tutorial

logical grouping objects

Users, sometimes, may want to collect objects for a particular purporse or find information about objects having a particular value of field.
A objectgroup is a logical grouping of business objects created by an individual user. Groups of objects are often the result of a query made by a user or can be manually constructed based upon the needs and desires of him.
The content of a objectgroup can be viewed at any time and objects can be added or deleted from it easily. However, a user has access only to objectgroups created by himself.
It is important to realize that objectgroups are not the same as links between objects. Links also group the business objects together, but they form a structured collection and are known to all users who have access to the objects.
Objectgroups must have a unique name assigned within a given user context but they are local to the context of each user: although a single user cannot duplicate a group name, different users can use the same name.
Users can manage objectgroups by the "Domain Object Manipulation" client.
Objectgroups
are often the result of a query (OOQL command ):

query immediate object SR_Bug * 00


lifecycle SR_SupportRequest
stage Analysis
maxitems 50 token xml;

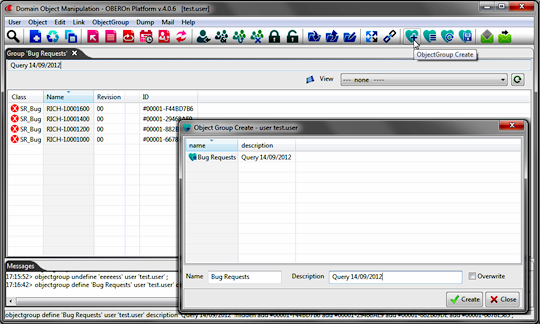

to save the contents of a query in a group you can click the "ObjectGroup create" button and set a name and a description for the group:

The equivalent "create group" OOQL command is:

objectgroup define 'Bug Requests' user 'test.user'


description 'Query 14/09/2012' !hidden
add #00001-F44BD7B6 add #00001-29468AE9
add #00001-882B69DE add #00001-6678E585 ;


or directly from the query:

query immediate object SR_Bug * 00
  lifecycle SR_SupportRequest
stage Analysis
maxitems 50
objectgroup 'Bug Requests' ;

NOTE: You can cut, copy, move objects between query result tabs to compose the group to save, by selecting the target objects and by using the Edit/Cut ; Edit/Copy ; Edit/Paste or Edit/Paste New from the main menu or the equivalents keyboard shortcuts.

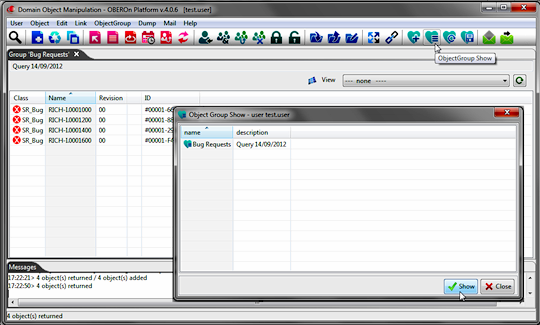

To retrieve the list of created objectgroups and to retrieve objects included inside them, you can click the "ObjectGroup Show" button:

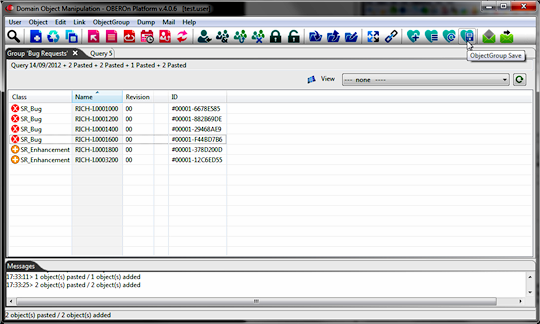

Moreover, you may want perform modification to the object list, for adding or removing objects or you may refreshing this list in case of, for example, a running process or a trigger are updating the objectgroup's status. You can click the "ObjectGroup Save" and "ObjectGroup Reload" buttons respectively.


objectgroup define 'Bug Requests'
  description 'Query 14/09/2012'+ 2 Pasted'
add #00001-F44BD7B6 add #00001-29468AE9
add #00001-882B69DE add #00001-6678E585
add #00001-00000021 add #00001-10DBACA0
overwrite;

or

objectgroup edit 'Bug Requests'
  description 'Query 14/09/2012' + 2 Pasted'
add #00001-00000021 add #00001-10DBACA0
;

A particular objectgroup named "Recent_Objects" is automatically created for each user to collect the object instances recently opened in full mode (field value reading); inside these groups the users can find only objects that are enabled to be listed in their lifecycle stage properties (see the "Add To Recent" option).
