configuration

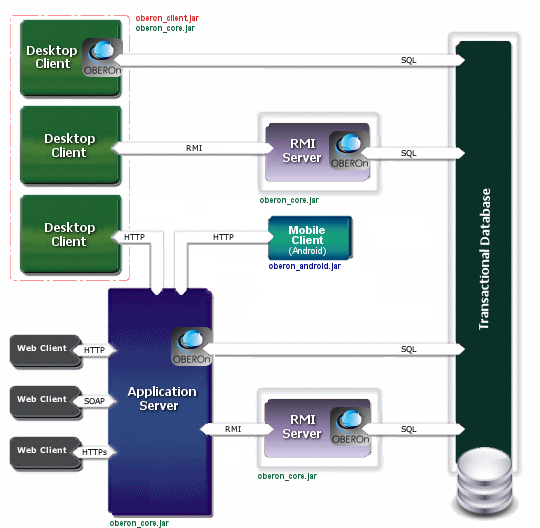

The access to OBEROn database can be realized in different ways:

A - desktop client directly linked to the database
B - desktop client linked to an OBEROn RMI server
C - desktop client linked to an HTTP application server
D - browser with a HTTP(s)/SOAP connection to an application server. In this case, the application server can access to OBEROn directly or throw the OBEROn RMI server.
E - mobile client linked to an HTTP application server

The desktop client (or web client), the OBEROn RMI server, the Application Server and the database may be physically located on different machines.


A - When a desktop client is directly connected to the database you must declare in the configuration file (oberon.ini ) all connection parameters:



Description Samples
[CONNECTION]

conntype

type of connection

conntype=DB

class

jdbc driver class

class=oracle.jdbc.driver.OracleDriver
class=org.gjt.mm.mysql.Driver
class=org.postgresql.Driver

drvurl

jdbc driver url

drvurl=jdbc:oracle:thin:@%s:%p:%d
drvurl=jdbc:oracle:oci8:@OBERON_SID
drvurl=jdbc:mysql://%s/%d
drvurl=jdbc:postgresql://%s/%d

server

database server IP or name

server=127.0.0.1
server=localhost

port

database server port

port=1521
port=3306

database

database (schema) name

database=OBERON

dbuser

database user name
(in Oracle is the user associated to the schema)

dbuser=OBERON

dbpwd

database user password

dbpwd=OBERONPWD

tablespace

Set "false" if your database doesn't support tablespaces

tablespace=false

connections

number of SQL connections to open

connections=3

mailserver

mail server IP or name (for external mail)

mailserver=localhost

serverURL

application server URL (for webservices)

serverURL=http://localhost:8080/oberon

svn

subversion (SVN) repository account URL

application=user:password@https://host/svn

application

application main menu to load with OBEROn Client; remove the declaration if you want select the application from a list

application=SR_Application

uid

OBEROn user name
(set it to directly access OBEROn without login)

uid=Richard.Green

pwd

OBEROn user password

pwd=mypassword

tmpdir

Set temporary directory where the program sources are exported and compiled

tmpdir=C:/temp

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true

showSQL

Set "true" to show in the framework log all the generated SQL instructions related to the executed OOQL commands

showSQL=false

Notes:
- server/port and database are not required for the Oracle OCI connection as they are specified in the tnsnames.ora file and identified with the Oracle SID.
- if uid and pwd are not defined they will be asked during the OBEROn login.
- the dbuser is not required when the OBEROn connects to database with default user name
- the dbpwd is not required when the database user has the default password

You can find examples for the oberon.ini configuration into the /etc/samples/client folder.


B - If the desktop client access OBEROn throw the OBEROn RMI server you need to set the RMI service URL in the configuration file (oberon.ini )

Description

Samples

[CONNECTION]

conntype

type of connection

conntype=RMI

registry

RMI service URL

registry=//127.0.0.1:1079/OberonRMI;
//127.0.0.1:1089/OberonRMI

serverURL

application server URL (for webservices)

serverURL=http://localhost:8080/oberon

svn

subversion (SVN) repository account URL

application=user:password@https://host/svn

application

application main menu to load with OBEROn Client; remove the declaration if you want select the application from a list

application=SR_Application

uid

OBEROn user name
(set it to directly access OBEROn without login)

uid=Richard.Green

pwd

OBEROn user password

pwd=mypassword

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true

showSQL

Set "true" to show in the framework log all the generated SQL instructions related to the executed OOQL commands

showSQL=false

Notes:
- registry can contain multiple URLs; this allows the client to connect to multiple OBEROn RMI server instances on different servers and/or ports.
- if uid and pwd are not defined they will be asked during the OBEROn login.

You can find an example for the oberon.ini (RMI configuration) into the /etc/samples/client folder.


In addition to the client configuration you must set the OBEROn RMI server parameters in the oberonRMI.ini



Description

Samples

[CONNECTION] Connection Section

type



type=connection

driver

driver used (one of the subsequent sections)

driver=Oracle

database

database name

database=OBERON

dbuser

database user name

dbuser=OBERON

dbpwd

database user password

dbpwd=OBERONPWD

tablespace

Set "false" if your database doesn't support tablespaces

tablespace=false

connections

number of concurrent database connections

connections=20

mailserver

mail server IP or name (for external mail)

mailserver=localhost

tmpdir

Set temporary directory where the program sources are exported and compiled

tmpdir=C:/temp

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true



[Oracle]

Driver sections (one for each available drivers)



type   type=driver

class

jdbc driver class

class=oracle.jdbc.driver.OracleDriver

drvurl

jdbc driver url

drvurl=jdbc:oracle:thin:@%s:%p:%d

server database server IP or name

server=127.0.0.1

port

database server port

port=1521

This file is subdivided in two part: the connection section and the driver list section. In the first part you must define the driver parameter selecting one of the driver name form the driver list section. Each driver section contains the connection parameters to different database type.
When the OBEROn RMI server starts, it opens multiple database connections, this number is fixed with the connection parameters. Each database connection is associated to an RMI channel.
If you start up multiple RMI servers, the total number of database/RMI connections is given by the sum of the connections for each server.

You can find examples for the oberonRMI.ini into the /etc/samples/rmi_server folder.


C - If the desktop client access OBEROn throw the HTTP application server you need to set the HTTP URL in the configuration file (oberon.ini )

Description

Samples

[CONNECTION]

conntype

type of connection

conntype=HTTP

serverURL

application server URL (also for webservices)

serverURL=http://localhost:8080/oberon

connections

number of HTTP connections in the local pool

connections=3

svn

subversion (SVN) repository account URL

application=user:password@https://host/svn

application

application main menu to load with OBEROn Client; remove the declaration if you want select the application from a list

application=SR_Application

uid

OBEROn user name
(set it to directly access OBEROn without login)

uid=Richard.Green

pwd

OBEROn user password

pwd=mypassword

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true

showSQL

Set "true" to show in the framework log all the generated SQL instructions related to the executed OOQL commands

showSQL=false

Notes:
- serverURL is valid for both the webservice publication and for all other OBEROn functionalities.
- if uid and pwd are not defined they will be asked during the OBEROn login.

You can find an example for the oberon.ini (HTTP configuration) into the /etc/samples/client folder.


D - The usual access to OBEROn is done by a web-browser, in this case the configuration file to edit is located on the application server, its name is : WEB-INF/classes/oberon.properties

  Description Samples

conntype

type of connection

conntype=DB

class

jdbc driver class

class=oracle.jdbc.driver.OracleDriver

drvurl

jdbc driver url

drvurl=jdbc:oracle:thin:@%s:%p:%d

server

database server IP or name

server=127.0.0.1

port

database server port

port=1521

database

database name

database=OBERON

dbuser

database user name

dbuser=OBERON

dbpwd

database user password

dbpwd=OBERONPWD

tablespace

Set "false" if your database doesn't support tablespaces

tablespace=false

connections

number of concurrent database connections

connections=20

mailserver

mail server IP or name (for external mail)

mailserver=localhost

tmpdir

Set temporary directory where the program sources are exported and compiled

tmpdir=C:/temp

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true

json

Set "true" to for forcing the server responses in JSON format instead of XML

json=true

When the application server accesses to OBEROn indirectly via the OBEROn RMI server(s), the oberon.properties must contains the RMI server URL(s):

  Description Samples

conntype

type of connection

conntype=RMI

registry

RMI service URL

registry=//127.0.0.1:1079/OberonRMI;
//127.0.0.1:1089/OberonRMI

debug

Set "true" to add debug information when OBEROn compile the java source code

debug=true

json

Set "true" to for forcing the server responses in JSON format instead of XML

json=true

and each RMI server must be properly configured editing the relative oberonRMI.ini file.

(*) An HTTP server can also connect to another HTTP server setting in the oberon.properties the conntype=HTTP and the serverURL instead of the RMI registrry.

You can find examples for the oberon.properties into the /etc/samples/http_server folder.


E - Android applications haven't configuration files, but the HTTP connection parameters are defined in the application Preferences. It is convenient to define the main Activity as OnSharedPreferenceChangeListener implementation, so, when the user changes the parameter values, a new connection attempt is performed to check their validity.

Description

Samples

serverURL

application server URL

serverURL=http://myserver.com/oberon

connections

number of HTTP connections in the local pool

connections=3

uid

OBEROn user name

uid=Richard.Green

pwd

OBEROn user password

pwd=mypassword


To define the layout of preference panel you need to add an xml file in the resource folder ( for example: ./res/xml/preferece_layout.xml )

<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">

<PreferenceCategoryandroid:title="@string/CONNECTION_preferences">

<EditTextPreference
android:key="CONNECTION.serverURL"
android:title="@string/title_serverURL_preference"
android:summary="@string/summary_serverURL_preference"
android:dialogTitle="@string/title_serverURL_preference"
android:defaultValue="http://localhost:8080/oberon" />

<EditTextPreference
android:key="CONNECTION.application"
android:title="@string/title_application_preference"
android:summary="@string/summary_application_preference"
android:dialogTitle="@string/title_application_preference"
android:defaultValue="Application" />

<EditTextPreference
android:key="CONNECTION.uid"
android:title="@string/title_uid_preference"
android:summary="@string/summary_uid_preference"
android:dialogTitle="@string/title_uid_preference"
android:defaultValue="" />

<EditTextPreference
android:key="CONNECTION.pwd"
android:title="@string/title_pwd_preference"
android:summary="@string/summary_pwd_preference"
android:dialogTitle="@string/title_pwd_preference"
android:defaultValue="" />

<EditTextPreference
android:key="CONNECTION.connections"
android:title="@string/title_connections_preference"
android:summary="@string/summary_connections_preference"
android:dialogTitle="@string/title_connections_preference"
android:numeric="integer"
android:maxLength="2"
android:defaultValue="3"/>

</PreferenceCategory>

</PreferenceScreen>
